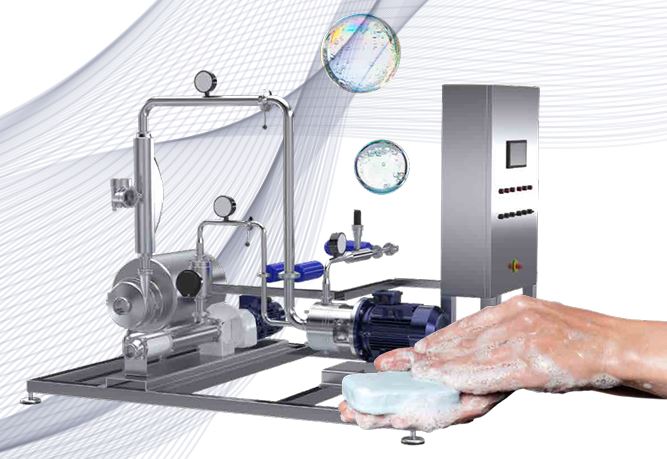

Sles Dilution Systems for great performance
TMXFLOW SLES Dilution System provides manufacturers with cost savings, production flexibility, and improved process efficiency.
Dairy
Cosmetic
Food
Pharmaceutical
Brewery
Syrups
Application
SLES (Sodium Lauryl Ether Sulphate) is a surfactant (surface-active agent) known for its excellent foaming and cleaning properties. It is used in both sanitary and industrial applications. SLES is especially preferred in products such as soaps, shampoos, liquid detergents, toothpaste, and liquid body gels.
Manufacturers typically purchase SLES in a highly viscous 70% concentra tion. This product needs to be diluted to around 27%, which often requires advanced systems due to the significant change in viscosity.
The TMXFlow SLES Dilution System offers manufacturing plants full control over the SLES dilution process, delivering consistent, high-quality solutions.
Working Details
TMXFlow SLES Dilution System provides manufacturers with cost savings, production flexibility, and improved process efficiency
Materials
Parts In Contact With The Product : Stainless Steel AISI 316L (1.4404)
Other Steel Parts: Stainless Steel AISI 304 (1.4301)
Gaskets In Contact With The Product: EPDM/NBR
Operating Limits
Parts In Contact With The Product : Stainless Steel AISI 316L (1.4404)
Temperature SLES 70% : Minimum 35ºC
Maximum pump inlet pressure : 4 bar
Flow volume SLES 27% : 1000-10000 kg/h
Maximum differential height : 6 bar
Technical Specifications
Pumps: Positive Displacement Pumps
Valves: Butterfly Valves
Mixer: High Shear Mixer
Flowmeters: Electromagnetic
Internal surface finish: Ra <0.8 μm
Connections: Clamp (other connections available on request)
Electrical Control: PLC and colour 9″ touch panel
Electrical Connection: 400V 3Ph 50Hz
Working Details:
- Dosage of minority products in the water line.
- Electric tracing of concentrated SLES line.
- pH control.
- Sampling valve on the diluted SLES discharge pipe.
- Remote connection to the equipment via VPN. Internet connection via WIFI or ethernet cable is required
User Benefits
- Continuous/batch supply of SLES at specific concentrations
- Quick start of the mixing process
- Constant tracing and recording of operational parameters
- Compact and lightweight construction
- Local or remote control
- Independence from deliveries of pre-diluted SLES
- Flexibility and continuity of production
- Highest quality of pre-prepared SLES on-site
- Significant cost reduction
