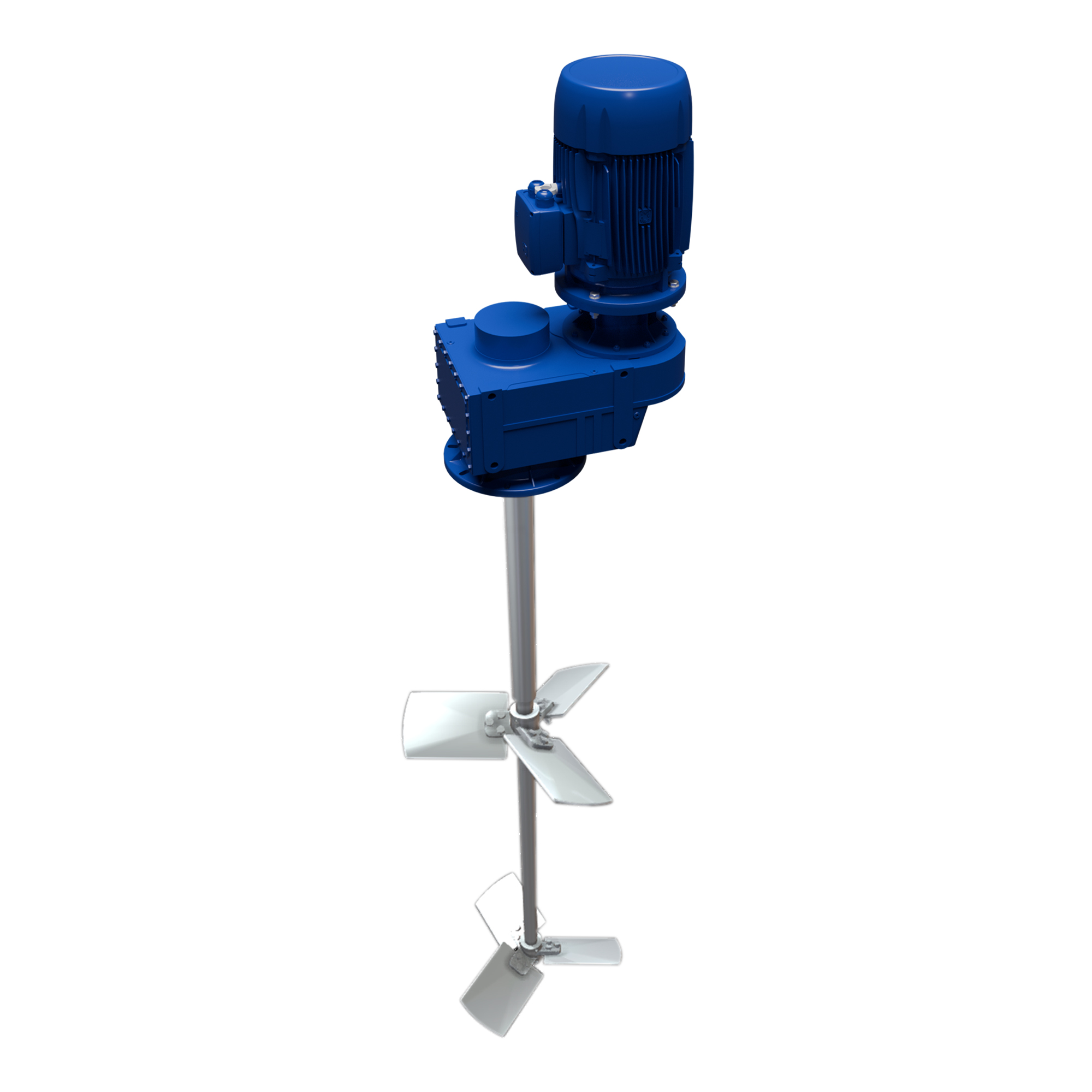

SKD Vertical Agitators for great performance

The has developed SKD vertical agitators to provide a high level of agitating in small volume vessels. Thanks to their compact design , they are ideal for agitating open vessels, dispersing reagents and powders, and maintaining mixes.

Dairy

dairy products

Cosmetic

Cosmetics

Food

food products

Pharmaceutical

pharmaceutical products

Brewery

brewery products

Syrups

Syrups

Application

The range of the SKD agitators presents vertical direct motor-driven agitators.

These agitators are used in the processes of mixing, dissolution, dispersion and maintenance whenever powerful and high-speed agitation is required in the food. Processing, cosmetics, pharmaceutical or chemical industries.

The agitators are normally fitted to small volume tanks of up to 1.500 liters for work with low-viscosity products

User Benefits

  • Versatile, modular, hygienic design
  • Can be configured for minimum energy consumption
  • Gentle product treatment
  • More uptime and higher yields due to low maintenance

Operation

The agitators are normally installed inside the tank either centrally with current deflectors or offset so that the offsetting itself prevents the rotation of the stirred product. The rotation of the propeller makes the fluid flow to the bottom and then up to the surface of the product along the walls of the tank. The effect is promoted if the bottom of the tank is curved. Vigorously agitates the content of the tank promoting the mixing of the product while the sawtooth propeller promotes its dispersion.

Materials

Parts in contact with the product…….. AISI 316L
V-ring and retainer……………………………. NBR
Bearing support…………………………………. Aluminum
Surface finish (except propeller)……… Ra ≤ 0,8 µm

Options

  • Welded propeller with Ra ≤ 0,5 µm surface finish.
  • Motor shroud.
  • Motors with other protections.
  • ATEX motor.
  • Sawtooth propeller
  • Motors: 950 rpm or 1500 rpm.
  • Pneumatic drive.

Selection Parameters

Type Tank Capacity (m³) Power (kw) Speed (rpm) Weight (kg)
SKD 10-005-130 0,1-0,7 0,55 950 17,0
SKD 15-007-130 0,2-0,8 0,75 1500 16,5
