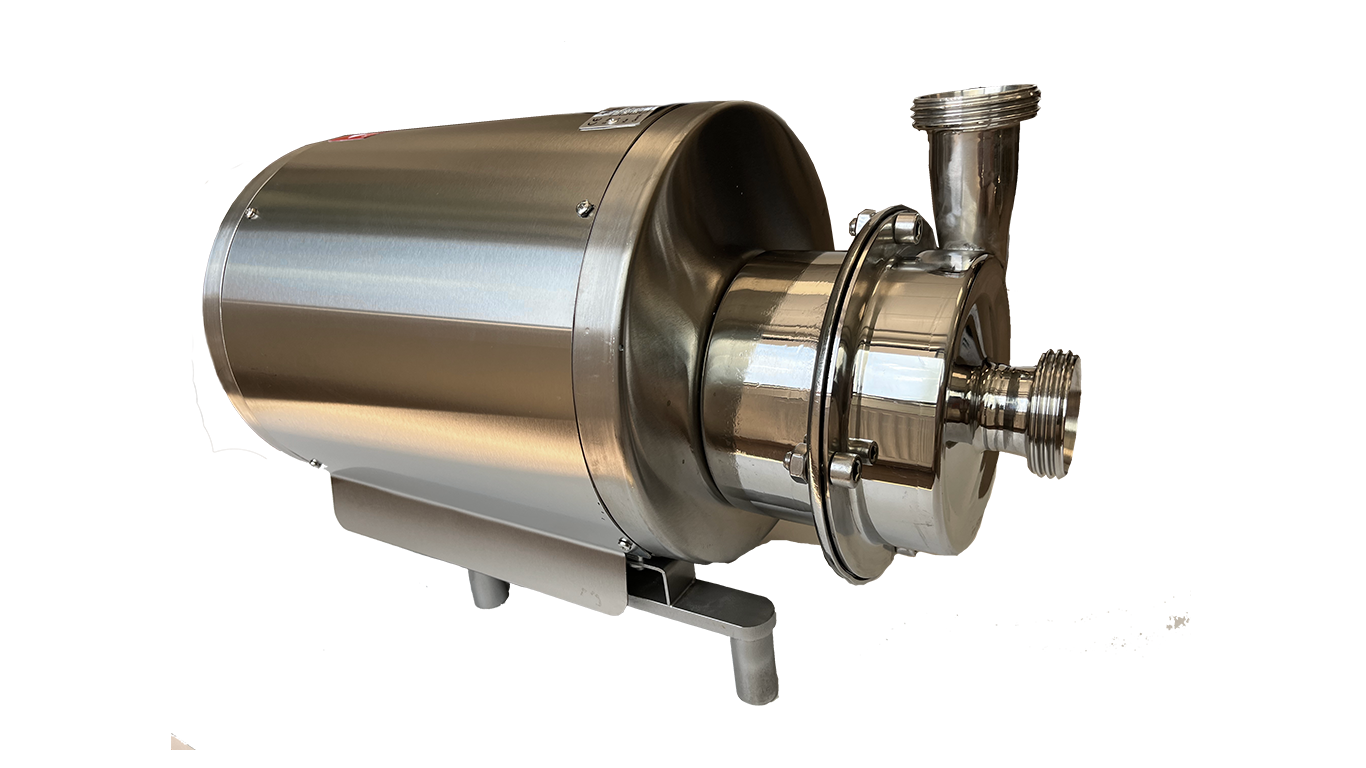

FCE Centrifugal Pump

FCE Centrifugal Pumps for great performance

TMX FCE Centrifugal pump is a stainless steel centrifugal pump ideal for the transfer of water and other low viscosity liquids. It is designed to cater for the needs of auxiliary services in the food-processing, chemical, pharmaceutical and wine-making industries.

Dairy

Cosmetic

Food

Pharmaceutical

Brewery

Syrups

Application

TMX FCE pump is a stainless steel centrifugal pump ideal for the transfer of water and other low viscosity liquids. It is designed to cater for the needs of auxiliary services in the food-processing, chemical, pharmaceutical and wine-making industries.

Design and Features

TMX FCE Centrifugal Pump is a range of close-coupled centrifugal pumps. It is made of a cold-formed stainless steel casing, open impeller manufactured with stainless steel cold-formed plate or investment casting (according to model), mechanical seal, pump cover, lantern and shaft. TMX FCE centrifugal pump is provided with an internal single mechanical seal.

Options

AISI 304 stainless steel motor shroud.
Other materials for mechanical seals and gaskets.
Different types of connections.
Motor with other voltages, frequencies, mechanial protections and efficiencies. Trolley and/or control panel.

User Benefits

Technical Specifications

Materials

Parts in contact with the product ………….AISI 316L
Other steel parts …………………………………EPDM or FPM
Gaskets in contact with the product ……..GG25
Mechanical Seal:
Rotary Part ………………………………………..AISI 316L
Stationary Part ……………………………………EPDM or FPM
Gaskets in contact with the product ………EPDM

Operating Limits

Maximum Working Pressure … 6 bar 87 PSI
Temperature range ……………… -10ºC to + 1200C 14ºF to 248 ºF
Maximum flow ……………………. 65 m3/h 286 US GPM
Maximum differential head ….. 66 m 217 ft
Maximum speed ………………….. 3000 rpm
Surface Finish ……………………… Matt
Conenctions ……………………….. Threaded connection (ISO 7)

Dimension FCE Centrifugal Pump

Downloads & Documents

FCE Centrifugal Pump Catalog
