Lobe Pumps
Lobe Pumps for great performance
Lobe Pumps range has been developed for general applications within the Dairy, Beverage, Food, Chemical and Personal Care industries.
Precision Flow Technology for Hygienic Processes
The Lobe Pump is a high-performance positive displacement pump developed for industrial applications where hygiene and process safety are critical. Thanks to its gentle product handling, consistent flow rate, and ability to operate across a wide viscosity range, it is widely preferred in the food, dairy, beverage, cosmetic, pharmaceutical, and chemical industries.
Discover how hygienic lobe pump technology can enhance the efficiency and reliability of your production line.
Design and Features

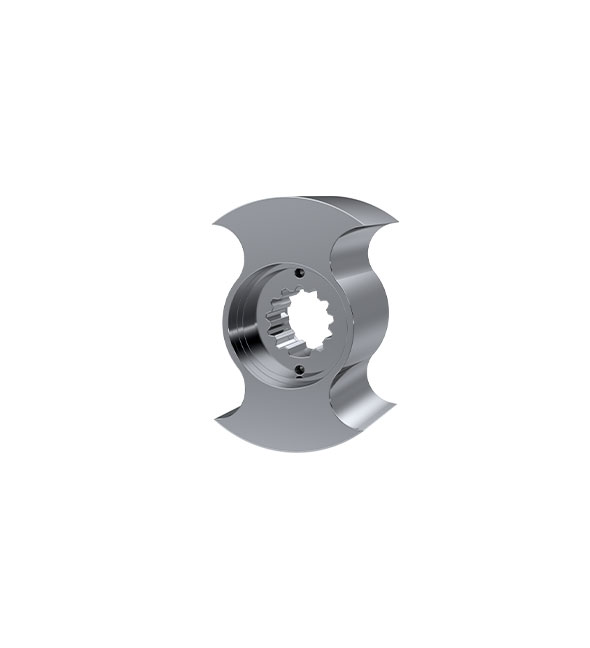

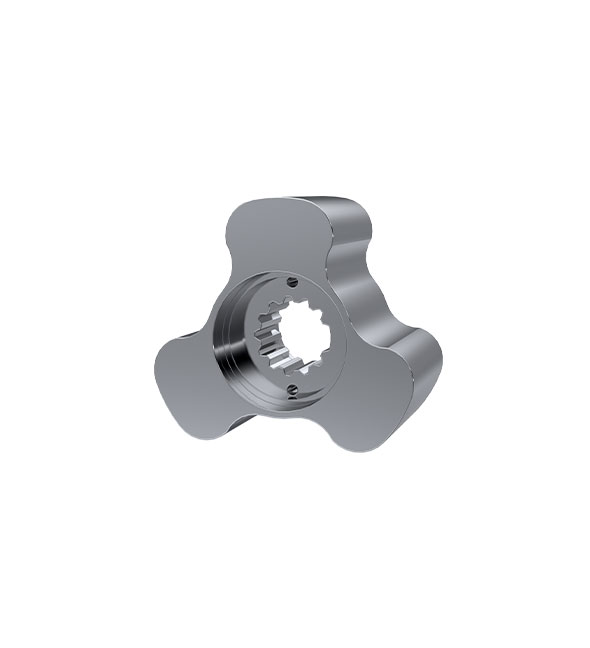

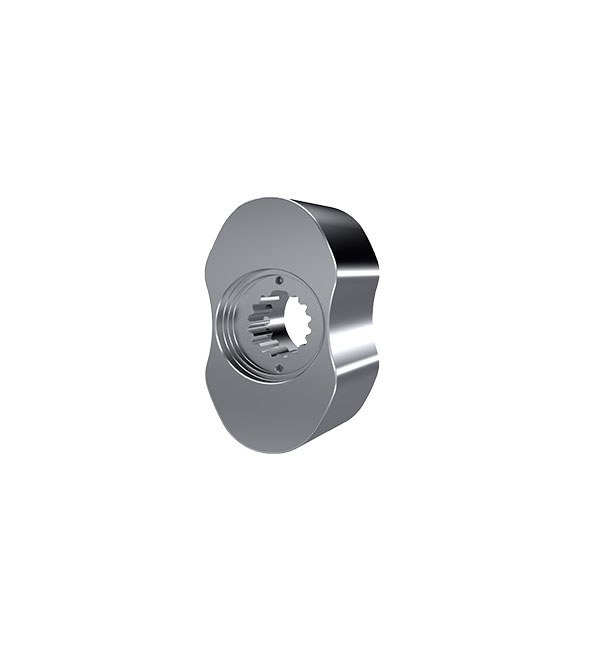

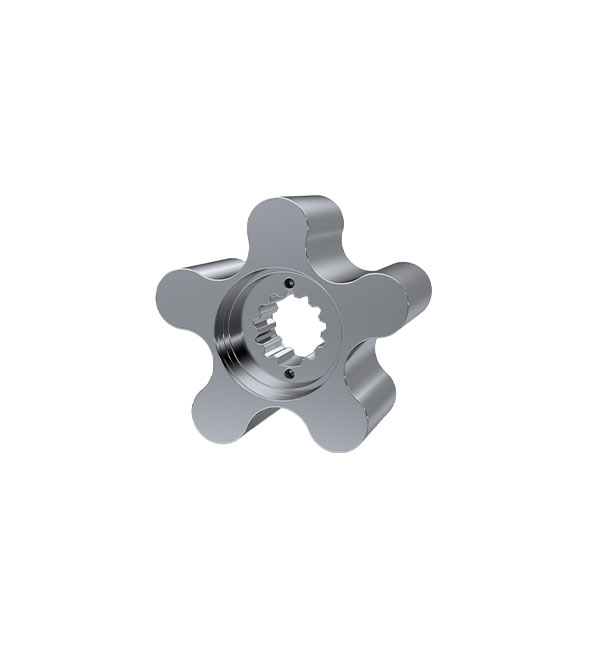

The stainless steel pump housing and cover, featuring a durable and hygienic cast construction, provide long service life and high hygiene standards. Various lobe designs allow flow performance to be adapted to the product characteristics, enabling the transfer of viscous and sensitive fluids while maintaining product integrity.
The hygienic mechanical seal system is supplied as standard with a SiC/SiC/FKM material combination and is supported by alternative seal options to meet different process requirements. Thanks to its maintenance-friendly design, seals and internal components can be quickly disassembled, minimizing maintenance time and downtime costs.
Technical Specifications
- Pump Head Housing: AISI 316L
- Gaskets: EPDM, FPM, FEP
- Gear Box: AISI 304
- Shafts: Duplex Stainless Steel
- Shaft Seal: Single or Double Mechanical Seal
- Surface Finish: Ra < 0.4 µm / Ra < 0.8 µm
- Connections: DIN 11851, SMS, ISO, Clamp
- Base Plate: Stainless Steel
- Coupling Guard: Stainless Steel
What Is a Lobe Pump?
A lobe pump is a type of positive displacement pump consisting of two or three lobed rotors. These pumps transfer fluid from the inlet to the outlet through rotating lobes, ensuring highly accurate and gentle product handling without compromising the structure of the fluid in sensitive industrial applications. TMXFLOW lobe pumps are particularly preferred for transferring viscous and delicate products.

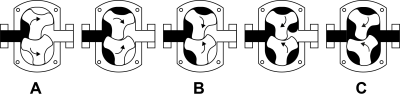

How Does a Lobe Pump Work?
A lobe pump operates on the principle of positive displacement and is especially suitable for processes requiring high hygiene standards. The fluid is conveyed smoothly, evenly, and in a controlled manner by synchronously rotating lobes inside the pump casing. The product is not compressed, allowing its structural integrity to be preserved.
Thanks to this operating principle, lobe pumps enable the safe transfer of low- to high-viscosity fluids while preventing damage to sensitive products.
Main Application Areas
